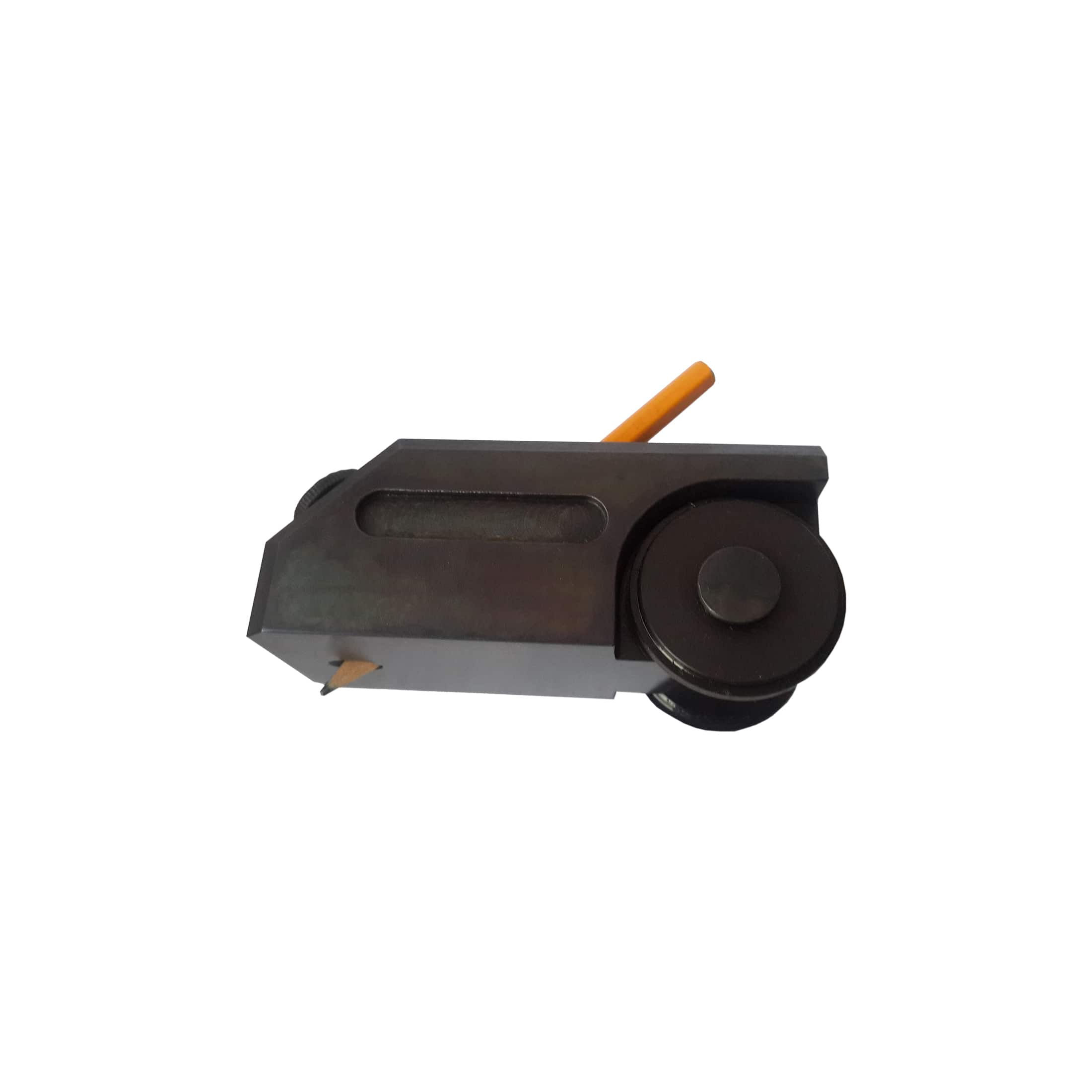

Pencil Hardness Tester PH-3363 | 鉛筆硬度計

測試鉛筆在施力下的斷裂點

The instrument is designed to determine the hardness of coatings by pencil leads in compliance with: ASTM D 3363, ECCA T4, EN 13523-4, ISO 15184:2012, JIS K 5600-5-4.



Application

The instrument is widely used for hardness testing of powder and liquid paint coatings. For high accuracy of the results, the lead of pencil should be sharpen under 90 ° angle. The tests begin with the softest pencil leads. If after applying there is no any signs of damage on the tested coating, user will have to repeat the test with one grade harder pencil leads. The MAX hardness value of pencil leads, that leaves no any traces of destruction on the coating, is hardness value of tested coating (for example: 3H, 2H, H, HB, B, 2B, etc.).



FEATURE:

  • Reliability and durability of the design
  • Easy in operation
  • Competitive price

Pencil Hardness Tester PH-3363

  • Measurement range 9В – 9Н
    Load 7,5N (750g) at 45°
    Size of tested area 70*160
    Sharpening angle of lead 90°
    Dimensions 120x55x50 mm
    Weight 1,8 kg
