The spectrophotometer PCE-CSM 8 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the spectrophotometer, you can choose between different colour spaces (CIE LAB, XYZ, Yxy, LCh, LUV, HunterLAB). After a measurement with the spectrophotometer, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the spectrophotometer, it is possible to store up to 1000 reference values and up to 10000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

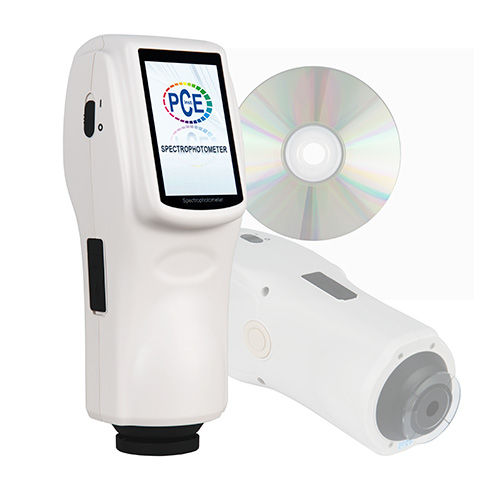

Spectrophotometer CSM 8

  • Measuring geometry 45/0 according to CIE No. 15, GB/T3987
    Integrating sphere Ø 58 mm
    Sensor Silicon photoelectric diode
    Wavelength range 400 ... 700 nm (10 nm pitch)
    Measuring aperture Ø 8 mm
    Colour spaces CIE LAB, XYZ, Yxy, LCh, LUV, HunterLAB
    Colour index ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(h)
    Chromacity data WI (ASTM E313 CIE/ISO, AATCC, Hunter)
    YI (ASTM D1925, ASTM E313)
    TI (ASTM E313, CIE/ISO)
    Metamerism Index Mt
    colour stain, colour fastness
    Observation angle 2° / 10°
    Light source D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12
    Light source device combined LED
    Life of light source 5 years, > 1.6 million measurements
    Data on display Spectral value/graph
    colorimetric value
    colour difference (value/graph)
    PASS/FAIL result
    colour offset
    colour simulation
