高空工作的風速監察

* 吊船工作安全指引:  可承受每秒 14 米的持續風速 / 強達每秒 31 米的陣風。

**天秤工作安全指引 : 風速超過每小時62公里,立即停止吊秤工作。



The anemometer ADL 11 is a data logger for wind speeds. The configuration on the wind measuring device is carried out via the supplied software and provides multiple settings for measurement. The wind meter measures various parameters. These include m / sec, km / h, knots, mph and ft / min. In addition to the measurement parameters, the measurement intervals can be set on the software by the wind measuring device. The data logger function accommodates 60,000 measured values. After completing the series of measurements, the data from the wind gauge can be read out on the computer via the software. The measurement results are displayed as either graphically as a curve or in tabular form.

The impeller installed on the wind gauge already responds to low flow velocities. In this case, the wind meter can be fixed by means of a mounting device. There is a threaded hole on the bottom of the wind gauge, so you can attach the unit firmly to the mounting bracket.


- Threaded hole on the device
- Configuration via the software
- Easy to use
- Direct-reacting, smooth-running impeller
- Various measuring units selectable
- Evaluation on the PC (graphic representation)
- Alarm when limit value exceeded
- Measurement memory for up to 60,000 values

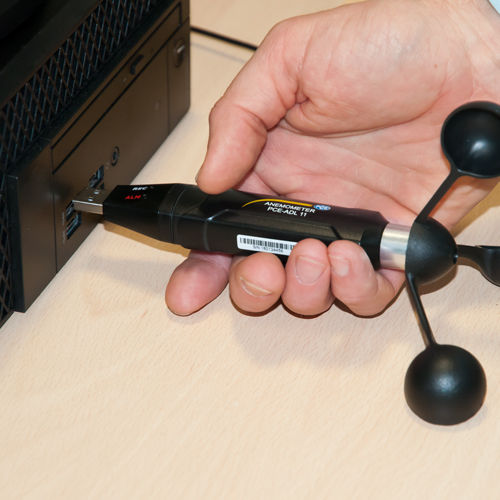

Anemometer ADL 11 | USB風速紀錄儀

  • Measuring ranges 1.2 ... 30.0 m / sec.
    4.3 ... 108.0 km / h
    2.33 ... 58.32 knots
    2.69 ... 67.2 miles / h
    236 ... 5906 ft / min
    Resolution 0.01 m / s
    0.1 km / h
    0.1 knot
    0.1 mph
    1 ft / min
    Measurement accuracy m / s: ± (3% + 0.20 m / s)
    km / h: ± (3% + 1.0 km / h)
    Knots: ± (3% + 0.4 knots)
    miles / h: ± ( 3% + 0.4 miles / h)
    ft / min: ± (3% + 40 ft / m)

    Storage For up to 60000 readings
    Data Interface USB for data transmission
    PC software For data evaluation with graphical representation
    Selectable recording intervals 3 seconds, 5 seconds, 10 seconds, 30 seconds, 1 meter, 5 meters, 10 meters, 30 meters, 1 hour, 2 hours, 3 hours, 6 hours, 12 hours
    Operating condition Indicated by red, yellow and green LEDs
    Alarm when extremes are exceeded Yes
    Measuring modes Automatic and manual start of the measurement
    Sensor Anemometer
    Power supply Lithium Thionyl Chloride Battery, 3.6V Mignon
    Alarm at low battery voltage Yes
    Operating conditions 0 ... 50°C / 32 ... 122°F, <80% relative humidity
    Max. Height above sea level 2000 m / 6561 ft
    Weight 49 g / < 1 lb
    Dimensions 145 x 35 x 30 mm / 5.7 x 1.4 x 1.2 in
