The VE 320HR Video Borescope is an ideal tool for professionals, maintenance technicians and in development. The Video Borescope allows for visualisation of the interior of machines and installations without the need to dismantle them, to capture images and video sequences of moving components, save them to memory and later transfer these to a computer. This Video Borescope is ideal for maintenance and repair in manufacturing or repair shops.



Never before has it been so easy to optically analyse with a Video Borescope. The 1m long and 5.5mm diameter flexible cable allows for access to small spaces. The cable has marks to assist indetermining the depth of penetration inside a space. It's easy to use, simply insert the cable into a cavity and you will see an image on the display of what's visible inside. Then a photo can be taken to document the area being inspected and this can be stored to memory. When necessary, these images can be transferred to a computer for further analysis or to send them to other people that might require the images for their work. Thanks to its flexible guide, lightweight design and high quality optics, problematic area can be detected easily and quickly with thei Video Borescope. This will allow for preventative measures to be taken without having to dismantle the machine first.



Utilising the VE 320HR Video Borescope daily for maintenance and inspection of machines and installations will save time and money spent dismantling machinery.

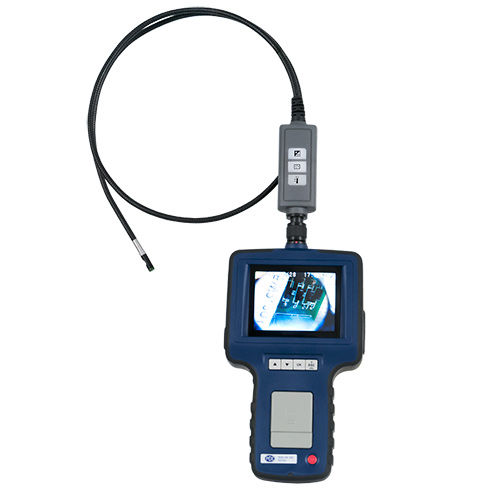

Borescope VE 320HR

  • Flexible cable length 1000mm
    Cable flexibility semi-flexible
    Image sensor CMOS
    Resolution / image sensor (dynamic / static) 320 x 240 / 640 x 480
    Image frequency 30 / s
    Exposure automatic
    White scale fixed
    Field of view 67°
    Visible distance 1.5 to 10cm
    Ilumination 4 LED
    Cable diameter 5.5mm
    Radial curvature 90mm
    Display 3.5" TFT
    Port Mini-USB 1.1 (V out / AV in)
    Memory 8 GB SD card
    Compression format MPEG4
    Image format JPEG (640 x 480)
    Video output format NTSC & PAL
    Video format ASF (320 x 240)
    Operating / Storage temperature -10 to 50ºC
    Power rechargeable Lithium-Ion battery
    Weight with carrying case
