IVE 320 is the ideal solution for inspecting hard-to-reach places. This borescope, inspection camera, videoscope or industrial endoscope comes with a rigid telescoping pole that extends up to 2.3 m (7.55') in length (3 m long total with camera connection). Plus, the borescope's 0.3 megapixel camera has a 23 mm (0.91") diameter flexible head with microphone and 12 white LEDs offering adjustable brightness. A 12.7 cm / 5 " LCD monitor with 800 x 480 pixel resolution allows for live viewing. For video recording, the PCE-IVE 320 accommodates SD memory cards from 2 ... 32 GB. An SD card reader is included in the delivery contents.



PCE-IVE 320 allows quick and easy viewing, monitoring and diagnosis of inaccessible areas of machines, engines and equipment. The borescope is a useful tool for recognizing potential hazards or broken parts. The device's flexible camera head can be bent to capture images at any angle. The brightness of the LEDs on the camera head can be conveniently adjusted by means of a thumb wheel located on the handle of the telescoping pole. The borescope also features a microphone for obtaining audio (headphone included).

Borescope with Telescoping Pole IVE 320

  • Camera head 1/4 CMOS
    Pixel 0.3 Megapixel
    Lighting 12 x LEDs (white)
    Camera length 320 mm / 12.60"
    Camera diameter 23 mm / 0.91"

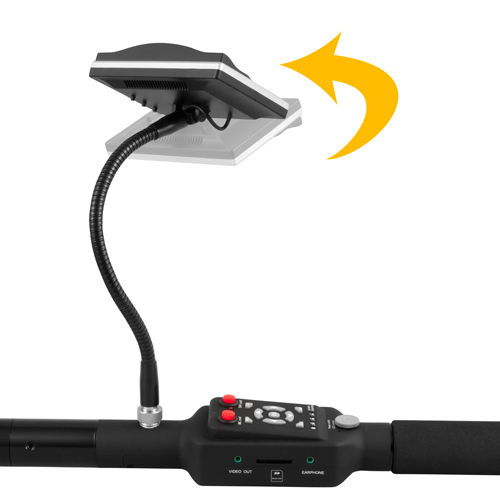

    Monitor
    LCD 12.7 cm / 5" screen
    Full dimensions 130 x 80 x 10 mm / 5.12 x 3.15 x 0.39"
    Resolution 800 x 480 pixels

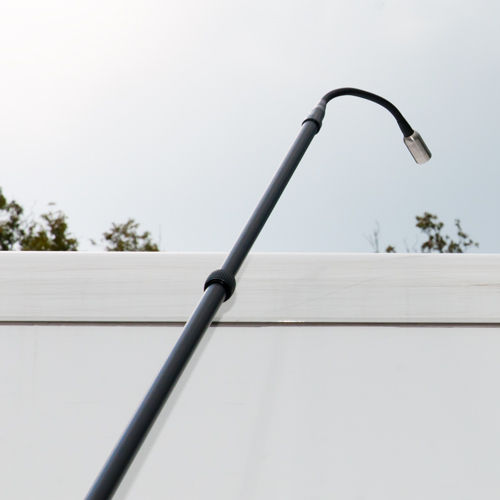

    Telescopic pole
    Maximum length 2.3 m / 7.55'
    Minimal length 0.9 m / 2.96'
    Rechargeable battery
    Battery capacity 1500 mAh
    Output voltage 12 V DC, 500 mA
    Battery charger
    Input voltage 100 ... 240 V AC, 50 / 60 Hz
    Output voltage 12 V DC, 500 mA
    Video recording
    Output 704 x 576 (PAL)
    Video format MPEG-4
    Recording format ASF
    Memory 2 ... 32 GB SD card
    General specifications
    Overall length Maximum 3 m / 9.84'
    Operating conditions -20 ... +50 °C / -4 ... +122 °F
