The Three-Phase Clamp Meter (Graphic Power Quality Analyzer) PCE-GPA 62 is used for single-phase or three-phase measurements of the active, reactive and apparent power, power factor, phase angle, energy, voltage, current as well as peaks and harmonics up to 50º of the harmonic waveform. The Three-Phase Clamp Meter PCE-GPA 62 comes with a built-in graphic display to show network analyzer values. Measured values can be both recorded and transferred to a PC for further analysis. The Three-Phase Clamp Meter PCE-GPA 62 is a professional handheld device to determine several parameters. Thanks to the backlight display, it is possible to get an accurate reading of measured values even with poor light conditions. Although the Three-Phase Clamp Meter PCE-GPA 62 comes calibrated from the manufacturer, an optional laboratory calibration and certificate, that meets ISO standards, can be ordered separately with the device or when an annual recalibration is required.

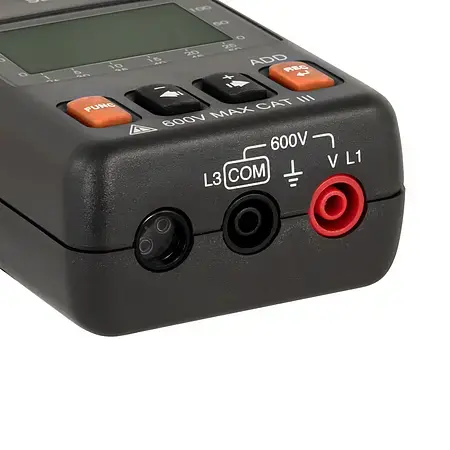

Clamp Meter PCE-GPA 62
- Real-time test, register and measurement of voltage and current (real effective)
- Measures power factor and phase angle, frequency, energy, active, reactive and apparent power (single-
phase or three-phase in symmetrical networks).- Max. conductor diameter: 55 mm / 2.2 in
- Graphic display
- Auto shut-off after 15 min. (this function may be disabled)
- Optional ISO calibration
Voltage measurement 4.0 ... 600.0 V RMS value ± 0.5% of the measured value ± 5 digits / 0.1 V Voltage peaks (> 10V) 50 Hz - 60 Hz / ± 5% ± 50 digits Current measurements 4.0 ... 1500.0 A real ± 1% V. of the measured value ± 5 digits / 0.01 A Current peaks (> 20A) 50 Hz - 60 Hz / ± 5% ± 50 digits Active power P 10 W ... 9999 kW in 5 measurement ranges
± 1% of the value + 20 digits (>20 V y >20 A)
± 2% of the value + 40 digits (>20 V y >20 A)
0.1 W ... 1 kW according to the measurement rangeApparent power S 10 VA ... 9999 kVA in 5 measurement ranges
± 1% of the value + 20 digits (>20 V y >20 A)
± 2% of the value + 40 digits (>20 V y >20 A)
0.1 VA ... 1 kVA according to the measurement rangeReactive power Q 10 VAr ... 9999 kVAr in 5 measurements ranges
± 1% of the value + 20 digits (>20 V y >20 A)
± 2% of the value + 40 digits (>20 V y >20 A)
0.1 VAr ... 1 kVAr according to the measurement rangePF power factor 0.000 ... 1.000
± 0.04 (>20 V >20 A) / 0,001
± 0.1 (>20 V >20 A) / 0,001Phase angle -180 ... +180 / ±1 / 0,1
0 ... +360 / ±1 / 0,1Frequency measurement (U > 50 V) 46 ... 65 Hz
±0.3 Hz / 0.1 HzActive energy 0 ... 999.999 kWh
± 1% of the value + 20 digitsApparent energy 0 ... 999.999 kVAh
± 1% of the value + 20 digitsReactive energy 0 ... 999.999 kVarh
± 1% of the value + 20 digitsHarmonics in the voltage (relative)
50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1%
21 - 50 th / ± 4% of the value ± 2% / 0.1%Harmonics in the voltage (absolute)
50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1%
21 - 50 th / ± 4% of the value ± 0.5% / 0.1%Harmonics in the current (relative)
50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1 %
21 - 50 th / ± 4% of the value ± 2% / 0.1 %Harmonics in the current (absolute)
50 - 60 Hz > 80 V AC1 - 20 th / ± 2% of the value ± 0.4 A / 0.1 A
21 - 50 th / ± 4% of the value ± 0.4 A / 0.1 ATotal harmonic distortion (THD-F)
50 - 60 Hz > 80 V y > 20 A0.0 - 20% / 2% / 0.1%
20.1 - 100% / ± 6% of the value ± 1% / 0.1%
100.1 - 999.9 % / ± 10% of the value ± 1% / 0.1%Max. clamp opening 55 mm / 2.2 in Range selection Auto Overload indication "OL = Overload Memory 50,000 readings Interface USB Software and data cable included in the delivery. They can be used with
Win 2000, XP, MEDisplay graphic LCD display, 128 x 64 with backlight Power supply 2x 1.5V AA batteries Energy consumption Approx. 10-mA Dimensions 271 x 112 x 46 mm / 10.6 x 4.4 x 1.8 in Weight 650 g / 1.4 lbs with batteries Operating conditions 85% max. R.H. / -10 ... 50°C / 14 ... 122°F Protection / Standards CAT III 600 V / EN 61010-2-032
