The closing force measuring device is a wireless, electronic measuring device for rail vehicle doors and sliding steps. The closing force measuring device is a further development of the well-established BIA600 closing force measuring device. It combines the well-known robust construction for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Manual

CLOSING FORCE MEASURING DEVICE BIA 600 BT

- Support of relevant standards - user guidance and evaluation according to EN 14752:2015,
   EN14752:2005 (optional)

- Precise measurements - granted by friction-free guidance and platform load cell

- Robust design - housing made of high-strength material for a long service life in tough applications
   Wireless - no more annoying cables

- Measuring point identification - via QR and barcodes (integrated solution)

- Easy to use – implements experience from years of use

- Extensive customer service - in-house calibration service and software updates ensure the
   Use of current guidelines

- Immediate evaluation - according to selected guidelines and standards

- Process reliability - integrated test instructions ensure that the measurement is in line with the guidelines

- Large temperature working range

- Language selection - Available in DE/ EN/ ES/ FR/IT/ CN

BIA600 BT
Application of force	on both sides
Measuring range	0 ... 700 N
Accuracy	+/– 3 N (0–100 N)
	+/– 3 % (>100 N)
Spring rate	10 N/mm
Opening width	90 mm / 3.5"
Area	100 x 100 mm / 3.9 x 3.9"
Force sensor	DMS bridge
Dimensions	320 x 250 x 110 mm / 12.5 x 9.8 x 4.3"
Weight	3.0kg / 6.6 lb

Spacers
- Complete set for all opening widths according to EN 14752:2015
- Automatic detection of the spacers used
- Automatic limit value adjustment according to opening width
- Easy to use, quick assembly without tools
- Robust design, low weight, POM

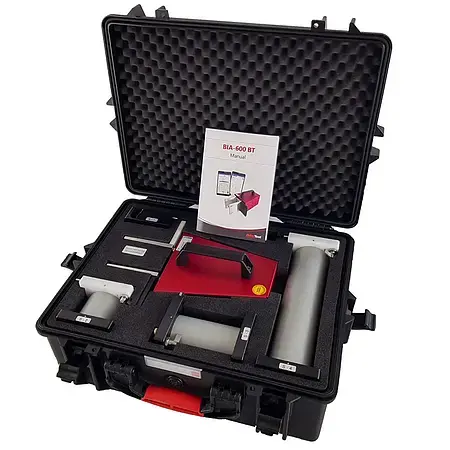

- Together with BIA 600 sensor, SEB2 in a carrying case

PC evaluation software PinchPilot
- Multilingual (DE, EN, IT, FR, ES)
- Graphic representation of the force curve
- Calculation of the standard-relevant characteristic values
- Evaluation according to different guidelines possible
- Custom policy adjustable
- Log printout
- Data export (Excel, CSV, PDF)
- Optional measuring point identification

Force Meter App downloadable from Google Play Store
- Force Meter – easy-to-use app with automatic guidelines and standards updates
- Time saving - immediate feedback on the measurement result including simpler report generation
- Paperless office - reduces paper and the associated costs and protects the environment
- Can be used individually - integration of the customer's signature possible
