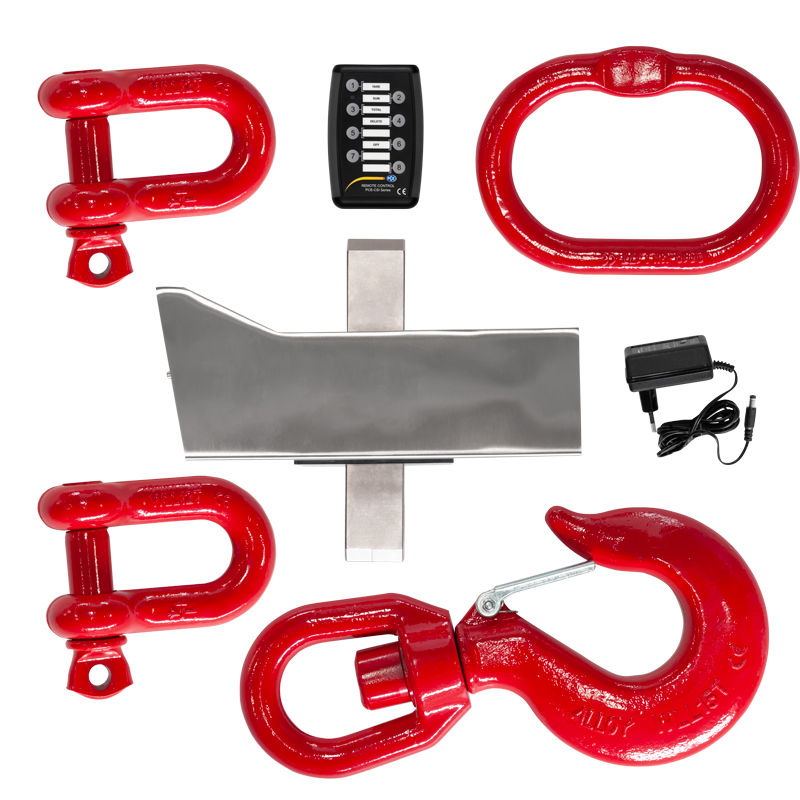

The heavy duty crane scale was developed for in-house weighing of up to 25 t. The crane scale has a massive shackle on the top and a rotatable hook with a safety catch on the underside. The heavy duty crane scale is operated using the infrared remote control supplied. The 5-digit LED display has a digit height of approx. 75 mm, so that the readings can be read from a distance without any problems. The integrated battery of the heavy duty crane scale ensures an operating time of over 40 hours. The battery level can be checked at any time. If it is low, the display of the heavy duty crane scale also starts to flash, so that it is easy for the operator to see when the battery needs to be charged.


The heavy heavy duty crane scale also offers other useful functions. The tare function enables weights to be tared (e.g. slings such as ropes, chains, etc.). If the weight of the objects to be tared is known, this can also be entered manually in advance. Another useful function of the heavy duty crane scale is the totalizing function. Several weights can be added and the sum read out. The display hold function can also be used to freeze measured values ​​on the display.

- Weighing range: 25,000 kg / 55,115 lb
- Resolution: 10 kg / 22 lb
- Minimum load: 100 kg / 220 lb
- Control via remote control
- Up to 40 hours of operation
- Tare, hold and totaling functions
- 5-digit display with 75 mm / 2.9" digit height
- Easy handling

Crane Scale CSI 25

  • Weighing range 25,000 kg / 55,115 lb
    Minimum load 100 kg / 220 lb
    Resolution 10 kg / 22 lb
    Standards OIML class III
    Zero range 4 % of the weighing range
    Tare range 100 % of the weighing range
    Settling time ≤ 10 seconds
    Overload display 100 % of the weighing range + 9e
    Max. safety load 125 % of the weighing range
    Maximum load 400 % of the weighing range
    Display 5-digit LCD/LED,  75 mm / 2.9" digit height
    Battery fully sealed lead battery, 6 V / 7 Ah
    Operating time ≥ 40 hours
    Power supply 9 V DC / 1000 mA
    Remote control range 15 m / 49 ft
    Power supply remote control  2 x 1.5 V AAA batteries
    Operating temperature -20 °C to 70 °C / -4 °F to 158 °F
    Operating humidity ≤ 85 % RH at below +20 °C / 68 °F
    Weight 79 kg / 174 lb
    A 1375 mm / 54.1"
    B 580 mm / 22.8"
    C 890 mm / 35.0"
    D 1065 mm / 41.9"
