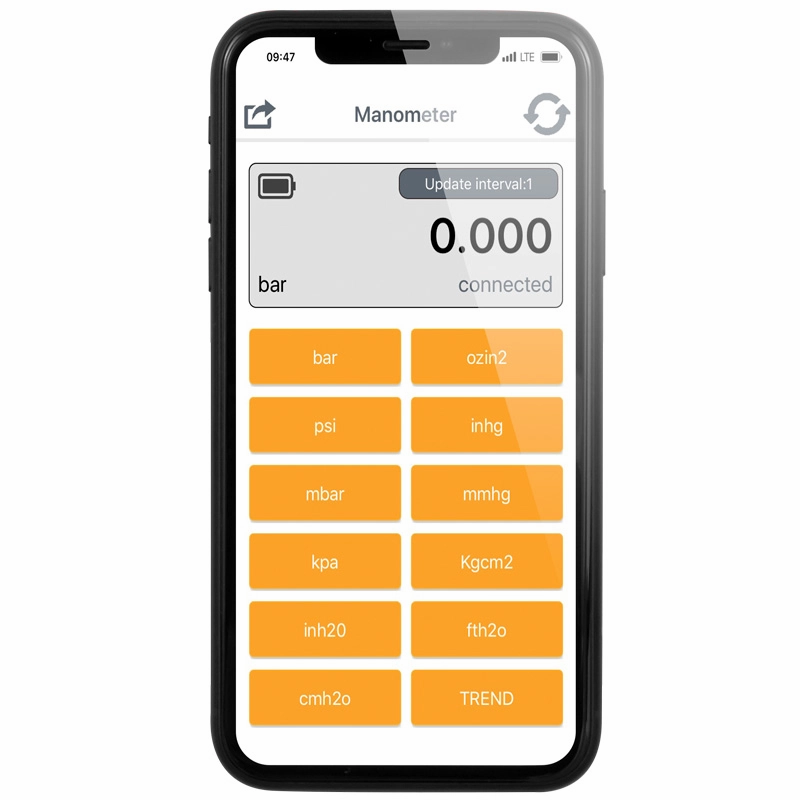

The Bluetooth differential pressure gauge BDP 10 is used to quickly and easily check the differential pressure. The Bluetooth differential pressure gauge finds its application, for example, in the ventilation and air conditioning technology with the help of a smartphone to measure the gas flow pressure or the static pressure. Also, the Bluetooth differential pressure gauge can be used to check for pressure drops. Here is in the app of the differential pressure gauge, a graphical display available. The measurement data can be sent by email for further processing.



In order to use the differential pressure gauge without a Bluetooth smartphone, the meter is equipped with a display. Thus, the Bluetooth differential pressure gauge is also self-sufficient. The PCE-BDP 10 may represent the differential pressure readings 11 units. The measuring range extends from -2 ... 2 PSI (± 137.9 mbar / hPa).


- Android and iOS app
- Bluetooth interface
- ± 2 PSI measuring range
- 11 different units
- LC display
- Plug nipple connection

Differential Pressure Gauge BDP 10

  • Measuring range ± 2 PSI
    Measurement accuracy          ± 0.006 PSI (0 ... 0.2 PSI)
      ± (0.006 PSI + 1.5% of Mw) (> 0.2 PSI)
    Resolution 0.001 PSI
    Display units Bar, PSI, mbar, kPa, inH20, cmH2O,
      ozin2, inHg, mmHg, kg / cm², ftH2O
    Medium Air
    Connection Plug nipple for direct
      hose connection
    Automatic shutdown     15 minutes
    Power supply 4 x 1.5V AAA batteries
    Operating conditions 0 ... 50°C / 32 ... 122°F
    Location conditions -10 ... 60°C / 14 ... 140°F
    Dimensions 178 x 38 x 24 mm / 7 x 1.5 x 0.9 in
    Weight About 70 g / < 1 lb without batteries


Copyright© 2021 by Tops Instruments Supplies Co. graphics, data sheet, photos and videos all rights reserved.
