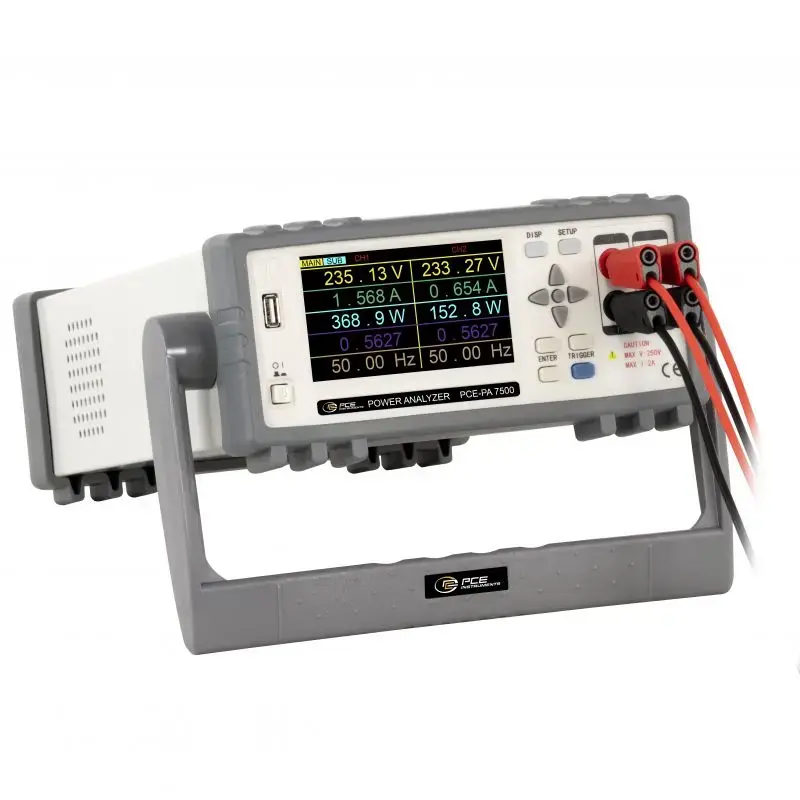

Electrical Tester 2-Channel PA 7500
The electrical tester is designed for accurate measurement and analysis of parameters such as power consumption and quality. The power meter has 2 input channels for measuring voltage, current, active power, power factor, frequency, and energy consumption in kWh. In addition to the color display, the electrical tester has additional input jacks for measurements up to 2 A. The measurement range of 0.1 ... 5000 W allows power measurement for many consumers in industry and crafts. The electrical tester has a current measurement range of 0.001 ... 20 A AC with a resolution of 1 mA.

Feature:
  1. - Power Measurement Range: 0.1 ... 5000 W
  2. - Current Measurement Range: 0.001 ... 20 A AC
  3. - Frequency, Power Factor, Energy
  4. - Accuracy: ±(0.4% of measured value + 0.1)
  5. - 2 Input Channels
  6. - Color Display

Electrical Tester 2-Channel PA 7500

  • Alternating Voltage AC
    Measurement Range 2 V ... 250 V
    Resolution 0.01 V
    Accuracy ±(0.4% of measured value + 0.1)

    Alternating Current AC
    Measurement Range 0.001 A ... 20 A
    Resolution 0.001 A
    Accuracy ±(0.4% of measured value + 0.1)

    Active Power
    Measurement Range 0.1 W ... 5000 W
    Resolution 0.1
    Accuracy ±(0.4% of measured value + 0.1)

    Power Factor
    Measurement Range 0.001 ... 1
    Resolution 0.0001
  • General Technical Data
    Number of Measurement Channels 3
    Frequency 10 ... 100 Hz
    Display Type TFT Color Display
    Display Size 4.3 Inches
    Cable Length 2 m
    Menu Language English, Chinese
    Protection Class IP20
    Weight 2870 g / 6.3 lb
    Device Weight with Accessories 3352 g / 7.3 lb
    Device Weight with Accessories and Packaging     5220 g / 11.5 lb
    Dimensions (L x W x H) 355 x 265 x 110 mm /
    13.9 x 10.4 x 4.3 in
    Operating Conditions 0 ... 40 °C, 0 ... 93 % r.H.
    Storage Conditions 0 ... 55 °C, 0 ... 93 % r.H.
