This gloss meter with small measuring area is used to quantify surfaces that must be measured. The gloss-measuring device operates on the reflection principle by sending light from a known light source onto the surface to be tested and calculates the gloss level of the surface according to the reflection of light particles. The gloss level in gloss units (GU) is then output to the display of the gloss meter.



The measurement geometry of the Gloss Meter SGM 60 is 60 degrees and is not adjustable. Evaluation software is included with the gloss meter which allows you to read out the measurement data to a computer and analyze and store your results. This gloss meter has data memory installed, which can accommodate up to 5,000 measured values ​​depending on the setting.

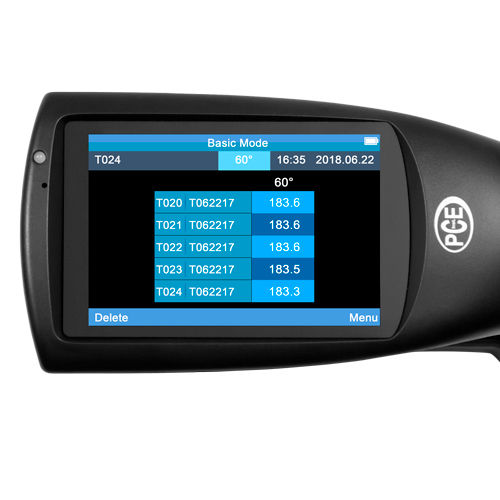

Gloss Meter SGM 60

  •
    Measurement geometry 60°
    Display 3.5" TFT touchscreen display
    Standards ISO 2813
    GB/T 9754
    ASTM D 523
    ASTM D 2457
    Measuring surface 9x15 mm / .4 x .6 in
    Measuring range 0 ... 300 GU
    Readability 0.1 GU
    Repeatability Meas. range 0 ... 10 GU: ±0.1 GU
    Meas. range 10 ... 100 GU: ±0.2 GU
    Meas. range 100 ... 300 GU: ±0.2 GU (%)
    Reproducibility Meas. range 0 ... 10 GU: ±0.2 GU
    Meas. range 10 ... 100 GU: ±0.5 GU
    Meas. range 100 ... 300 GU: ±0.5 GU (%)
    Chromaticity Fulfils CIE 1931(2°) under a CIE C – light source
    Measurement accuracy ±1.5 / ±1.5%
    Measuring time 0.5 second
    Dimensions 160 x 75 x 90 mm / 6.3 x 3 x 3.5 in
    Weight 350 g / < 1 lb
    Menu language English, Chinese
    Power supply 3200-mAh Li-ion rechargeable battery
    Interface USB / RS-232
    Measuring storage Baseline measurement: 1000
    Software Included
    Operating temperature         0 ... 40°C / 32 ... 104°F
    Storage temperature  -20 ... 50°C / -4 ... 122°F
    Relative humidity <85% rel. humidity (non-condensing)
