The HVAC meter can measure material thicknesses up to 300 mm / 11.81". So that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding speed of sound in the HVAC meter. For materials such as steel, aluminum, zinc, silver and gold, the appropriate sound speeds are already stored in the device library. This means that the HVAC meter can be used universally.
With the limit value function in the HVAC meter, individual maximum and minimum values can be stored. If the measured value of the test piece is outside the limits, the HVAC meter signals this visually. If necessary, the signaling can also be done acoustically by the HVAC meter in addition to the visual display. This is why the HVAC meter is used, for example, in quality assurance and in incoming goods inspections.
The HVAC meter has a data memory on which the measured values can be recorded. After a measurement sequence, the stored measurement values can be analyzed directly on the HVAC meter. The stored data are graphically displayed by the HVAC meter. In addition, each individual measuring point can be approached and read in the graphics of the HVAC meter. For a simplified analysis of the measured values, the average, the largest and smallest measured value is displayed on the HVAC meter. The HVAC meter can optionally be equipped with an ISO calibration certificate.

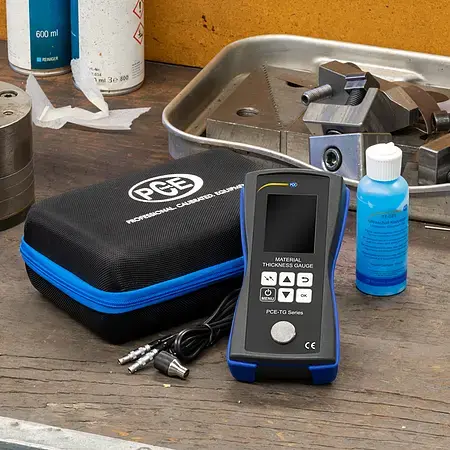

HVAC Meter PCE-TG 150 F2.5
- Measured value memory
- Calibration reference on the housing
- Automatic shutdown
- Material thickness measurement up to 300 mm / 11.81"
- Battery status indicator
- Optionally with ISO calibration certificate
Measuring range 1.20 ... 300.0 mm / 0.04 ... 11.81" Resolution 0.01 mm at ≤99.99 mm 0.1 mm at ≥100.0 mm Accuracy ±0.5 % of measured value + 0.05 mm Storage space 1500 measured values Sensor PCE-TG 2.5M Probe frequency 2.5 MHz Temperature range -10 ... 60 °C / 14 ... 140 °F Diameter Ø12mm Further specifications Adjustable speed of sound 1000 ... 9999 m/s Smallest pipe diameter Ø20 x 3 mm (steel) Material library 15 memory locations Calibration reference 4 mm Display 2.4 inch TFT LCD color display with brightness adjustment Power supply 3 x 1.5 V AA batteries Automatic switch-off switched off, 2, 5, 10, 30 minutes Ambient conditions 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing Dimensions 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5" Weight 320 g / 11.2 oz
