Compact in-line refractometer iPR-C2 S with extremely short reaction time for continuous measurement and real-time process control with an analogue data output. It is characterized by minimal size and weight and has an excellent price-performance ratio.
The iPR-C2 S enables the inline measurement of refractive index, Brix or concentration to monitor and control the concentration of substances in solution or liquid mixtures in a process. The compact stainless steel measuring head with YAG prism is equipped with an evaluation unit for connection to a PC or control console.

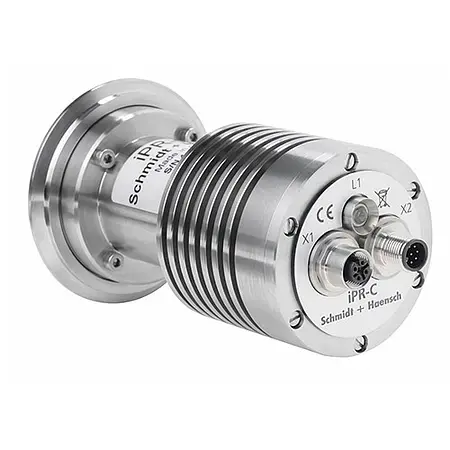

In-line Process- Refractometer iPR-C2 S

數量

- accurate, fast and reliable

- permanent inline real time concentration measurement

- compact sensor

- analogue 4-20 measured value output

- excellent value for money

- determination of mixing ratios

- quality and quantity control of dissolved solids

- detection of product transitions

- determination of the concentration and degree of contamination of cooling lubricants and cleaning solutions

Technical Specification
Measuring range	1.3320 - 1.4209 nD 0 - 50 Brix
Resolution	0.0001 nD 0.05 Brix
Accuracy	± 0.0002 nD ±0.15 Brix (at 20 °C / 68 °F)
Temperature
Ambient temperature	0 to 45 °C / 32 to 113 °F
Process temperature (max.)	Stainless steel: +80 °C / 176 °F
Process temperature (min.)	-10 °C / 14 °F
Process pressure (max.)	1 MPa (145 psi, 10 bar)
Additional Information
Prism	YAG
Process contact material	YAG, stainless steel optional: PTFE
Protection class	IP 69 K tested by TÜV Rheinland
Light source / wavelength	589 nm LED
Interfaces, switches	4-20 mA, (Brix 0 - 50 with ATC) one switching output 1 ampere a serial communication over RS232, RS422 or USB
