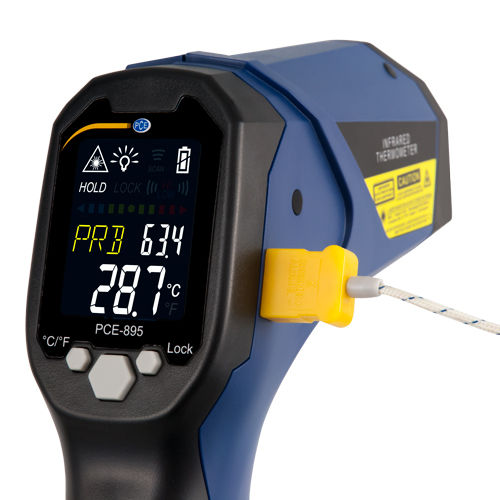

Dual Laser Infrared Thermometer 895

Cross laser thermometer for non-contact measurement of surface temperatures /

Fast response time / Adjustable emissivity / Max-Min function / USB / SD card



The Dual Laser Thermometer 895 is used for fast surface temperature measurement. The two laser points of the dual laser thermometer 895 mark the exact measuring point and thus offer excellent assistance with the temperature measurement. Due to the cross laser function, the two laser spots indicate exactly how large the actual IR spot is. The emissivity of the dual laser thermometer 895 is adjustable in the range of 0.10 ... 1.0. Thus, the dual laser thermometer 895 is suitable for almost all surfaces.



The temperature measuring range extends from -35 ... 1600°C / -31 ... 2912°F. In addition to the IR function, a type K thermocouple can also be connected to the dual laser thermometer. A USB interface and an SD memory card slot complete the functionality of this professional thermometer. The SD card enables data logging of several hours on machines and systems. Using the PC software, the stored temperature profiles can be read out and exported. This makes the Dual Laser Thermometer ideal for long-term temperature measurements.



雙激光溫度計 895 擁有兩個測量激光點,從而為溫度測量提供了極好的幫助。由於交叉激光功能,兩個激光點精確地指示實際IR點的大小,發射率可在0.10 ... 1.0的範圍內調節。因此幾乎適用於所有表面。溫度測量範圍為-35 ... 1600°C / -31 ... 2912°F。

除了IR功能外,K Type 還可以連接到雙激光溫度計,機身設有USB及SD卡槽,令機能更加全面,完善了這款專業溫度計的功能。

利用895專屬電腦程式,可以讀取和導出溫度數據,這款雙激光溫度計成為測量溫度工作首選。



Infrared Thermometer 895

  • Infrared



    Measuring range -35 ... 1600°C / -31 ... 2912°F
    Measuring accuracy (at 23 ... 25°C ambient temperature) -35 ... 0°C / 0°F: ± 2°C / 3.6°F + 0.05*TObj
    0 ... 1600°C: ± 2% v. Mw. or ± 2°C / 3.6°F
    Resolution 1°C / 1.8°F at 1000 .... 1600°C / 1832 ... 2912°F

    Thermoelement
    Measuring range Type K: -64 ... 1400°C / -83 ... 2552°F
    Measuring accuracy (at 23 ... 25°C ambient temperature) ± 1% v. Mw. or ± 1°C / 1.8°F
    Resolution 0.1°C / 0.18°F at -64 ... 999.9°C / -83.2 ... 1831.8°F

    Emissivity Adjustable 0.10 ... 1.0
    Spectral range 8 ... 14 µm
    Response time 1 s
    Optical resolution / measurement spot ratio 60:1
    Storage Internal: 24 memory points
    External (micro-SD card): max. 8 GB supported
    Interface USB
    Display LCD illuminated
    Power supply 2 x 1.5V AA batteries
    Operating time Typical: 14 h
    Continuous: 10 h
    Operating conditions 0 ... 50°C / 32 ... 122°F
    Weight ca. 400 g / 14.1 oz
    Dimensions 203 x 176 x 89 mm / 7.9 x 6.9 x 3.5 in
