iPress-1M The hot mounting machine is used for inlaying small, difficult to hold or irregular metallographic and petrographic samples before grinding and polishing.

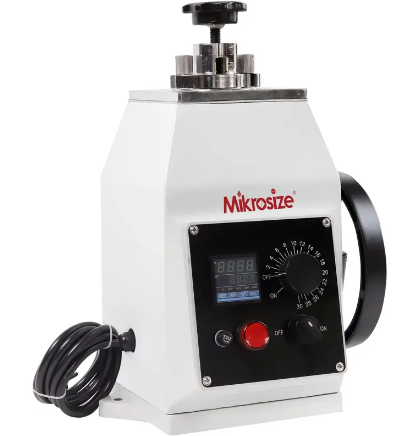

iPress-1M Manual Metallographic Mounting Press
1.After being embedded by this machine, it is convenient to grind and polish the sample, which is beneficial to observe the material structure of the sample under the metallographic microscope and test the hardness of the sample on the hardness tester.
2.The inlay material of this machine is limited to thermosetting materials. The pressing temperature of different thermosetting materials can be adjusted and customized according to the materials.
Product Name
iPress-1M
Sample pressing diameter
Φ22、Φ30、Φ45mm Three specifications (standard configuration 1, choose when ordering)
Temperature control range
Room temperature-300℃
Timing range
0-30min
Overall power
≤600W
Overall dimension
265*260*425mm
Packing size
460*370*550mm
Net weight
32kg
Gross weight
40kg
