iPress-2HA The hot mounting machine is used for inlaying small, difficult to hold or irregular metallographic and petrographic samples before grinding and polishing.

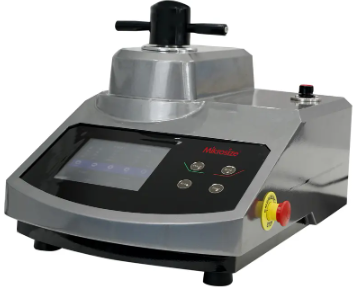

iPress-2HA Auto Metallographic Mounting Press(Hydraulic Pressure)

  • 1. After being embedded by this machine, it is convenient to grind and polish the sample, which is beneficial to observe the material structure of the sample under the metallographic microscope and test the hardness of the sample on the hardness tester.



    2.The inlay material of this machine is limited to thermosetting materials. The pressing temperature of different thermosetting materials can be adjusted and customized according to the material.



    3.This machine can automatically heat and pressurize. After pressing and forming, it will cool down and stop automatically. Open the upper cover and press the rising key to automatically raise the sample to take parts.



    4.This machine is a multi-functional water-cooled inlay machine for various samples. It has the advantages of large number of molds and short molding time within 6min.

  • Product Name

    iPress-2HA



    Sample pressing diameter

    ф22mm ф30mm、ф45mm(choose any one)

    Heater

    220V 1600W(ф22mm ф30mm)/2000W (ф45mm)

    Sample preparation pressure

    0-10MPa

    Heating temperature range

    35~300℃

    Sample preparation time

    About 6min

    Cooling mode

    Water cooling

    Overall dimension

    435*610*430mm

    Packing size

    715*530*585mm

    Net weight

    52kg

    Gross weight

    64kg
