The light meter is a precise measuring instrument that meets the highest demands for light measurements. In accordance with DIN 5032-7, it fulfils the requirements of precision class A, which enables accurate and reliable detection of light intensities. With an impressive measuring range of 0.000 lux to 500,000 lux, the light meter is extremely versatile.



FEATURE:

  1. - Precision according to DIN 5032-7
  2. - Large measuring range: 0.000 lx ... 500 klux
  3. - Accuracy class: A
  4. - External sensor
  5. - 8 GB measured value memory
  6. - Battery operation

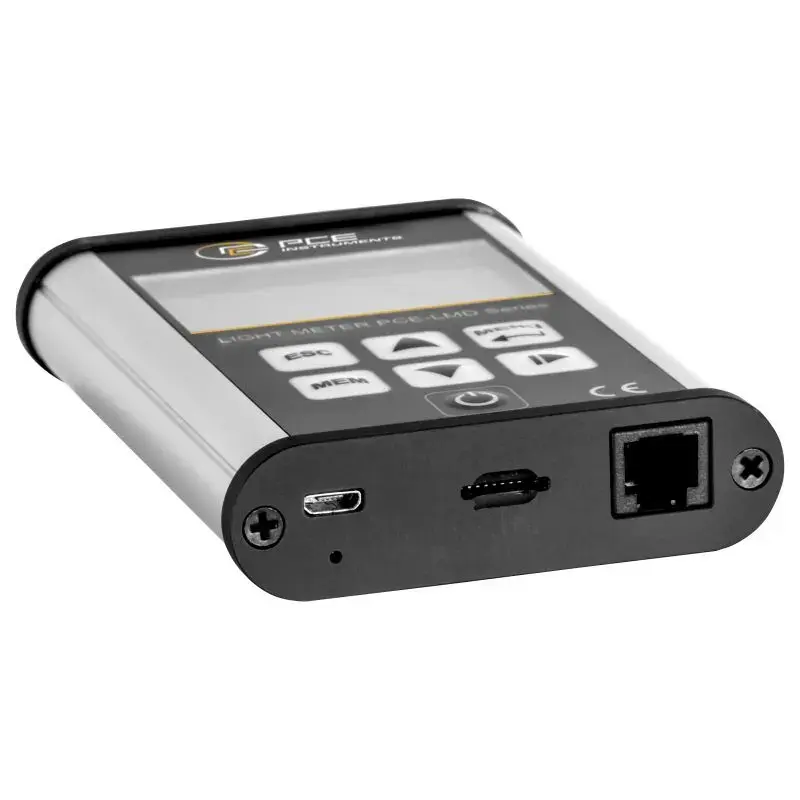

Lux meter LMD 200

  • Light
    Measurement range 0 lx ... +50 lx
    Resolution 0.001 lx
    Accuracy Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C

    Light
    Measurement range +50 lx ... +5 klx
    Resolution 0.1 lx
    Accuracy Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C

    Light
    Measurement range +5 klx ... +500 klx
    Resolution 0.01 klx
    accuracy total error ≤ 2.0% (CIE, DIN 5032-7) class A @ 10 ... 40 °C
  • General technical data
    Units lx, klx
    Display type LCD
    Display refresh rate 1 x per second
    Storage medium Micro-SD card
    Memory interval of 1 s
    Memory interval up to 60 s
    Memory capacity 8 GB
    Interface Micro-USB
    Standard(s) DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665
    Operating time 23 h
    Measurement rate 1 Hz
    Classification A (CIE, DIN 5032-7)
    Menu language English, Polish
    Protection class (appliance) IP20
    Power supply 5V DC / max. 2,1A
    Weight 172 g
    Device weight with delivery 1.67 kg
    Equipment weight with scope of delivery and outer packaging   1,71 kg
    Dimensions (L x W x H) 118 x 74 x 21 mm
    Other dimensions Probe dimensions: Ø 44 x 25 mm
    . Extension rod: approx. 1 metre
    Operating conditions -20 ... 50 °C , 90 % r.H.
    storage conditions -20 ... 50 °C , 90 % RH
