The milliohmmeter with seven selectable measuring ranges from 0 µΩ to 200 Ω, a maximum resolution of 0.1 µΩ and a maximum test current of 10 A offers a wide range of applications. Thanks to the 4-wire measuring method, the micro-ohmmeter guarantees accurate measurements at the smallest resistances without the influence of the lead resistance. It can therefore be used for a wide range of applications, e.g. to detect poor contact between two measuring points, measurements on switches, continuity of earth connections or for testing metal coatings.

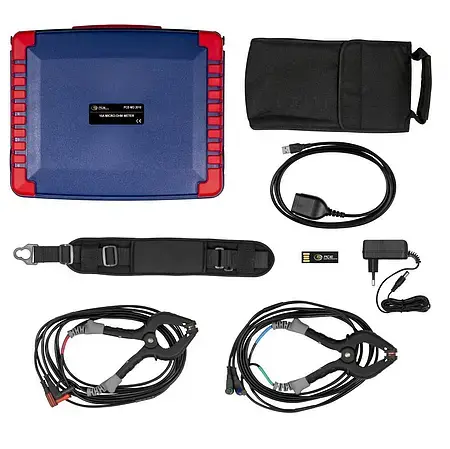

The illuminated LC display of the milliohmmeter makes it easy to read the measurement results, even in unfavourable lighting conditions. With an internal memory for up to 200 measured values and a low battery indicator, the device offers additional user-friendliness and makes the milliohmmeter an indispensable tool for preventive maintenance. The data can be transferred to the software via the optical RS232 interface and a text document with the measurement data can also be exported. The practical case and a bag for the test leads make it easy to transport the measuring device.




Manual

Milliohmmeter/Micro-Ohmmeter PCE-MO 2010

數量
  • - 7 selectable measuring ranges

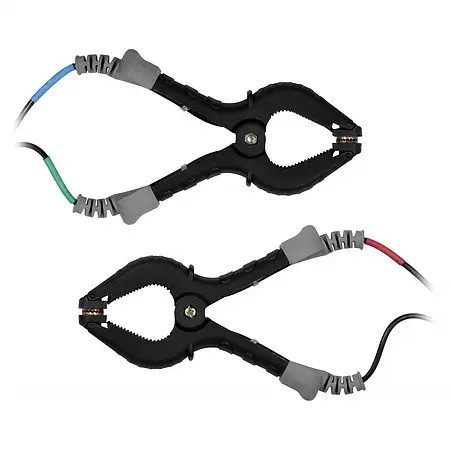

    - 4-wire measuring method

    - LC display 5.1 inch with illumination

    - Internal memory

    - Automatic switch-off

    - Date and time display

  • Resistance
    Measuring range   0 µΩ ... 200 µΩ
    Resolution   0.1 µΩ
    Accuracy   ±(2% + 8 digit)
    Resistance
    Measuring range   0 µΩ ... 2000 µΩ
    Resolution   1 µΩ
    Accuracy   ±(2% + 8 digit)
    Resistance
    Measuring range   0 mΩ ... 20 mΩ
    Resolution   0.01 mΩ
    Accuracy   ±(1% + 4 digit)
    Resistance
    Measuring range   0 mΩ ... 200 mΩ
    Resolution   0.1 mΩ
    Accuracy   ±(1% + 4 digit)
    Resistance
    Measuring range   0 Ω ... 2 Ω
    Resolution   1 mΩ
    Accuracy   ±(1% + 4 digit)
    Resistance
    Measuring range   0 Ω ... 20 Ω
    Resolution   0.01 Ω
    Accuracy   ±(1% + 4 digit)
    Resistance
    Measuring range   0 Ω ... 200 Ω
    Resolution   0.1 Ω
    Accuracy   ±(1% + 4 digit)
    General technical data
    Display type   LCD with illumination
    Display size   5.1 inch
    Storage medium   Internal memory
    Memory capacity   200 values
    Interface   RS232
    Standard(s)   IEC61010-1, EN 61326-1
    Automatic switch-off   3 min
    Safety standard   CAT III 300V
    Measurement method   4-wire method for mΩ measurement
    Test current   10 A: 200.0 μΩ / 2000 μΩ
    1 A: 20.00 mΩ / 200.0 mΩ
    100 mA: 2.000 Ω / 20.00 Ω
    10 mA: 200.0 Ω
    Menu language   English
    Protection class (device)   IP30
    Power supply   24 VDC / 0.625 A
    Plug type   Euro plug device
    Weight   3126 g
    Dimensions (L x W x H)   322 x 260 x 135 mm
    Operating conditions   0 ... 40 °C , 0 ... 80 % r.H
    Storage conditions   0 ... 40 °C , 0 ... 40 % r.H
    Accumulator/battery   1x 14.8 V , lithium-ion battery
    Capacity   5200 mAh
