Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation.

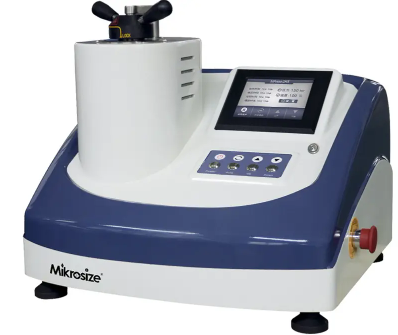

MPress-2HA Auto Metallographic Mounting Press
●MPress-2HA is an advanced hydraulic water-cooling automatic sample mounting press.
●Controlled by the one-chip computer program, which realizes the one-key operation of heating, loading, holding, cooling and unloading process.
●The sample mounting is automatically completed without operator on duty.
●The machine adopts hydraulic pump with higher pressure, which makes the sample more compact.
●Lengthened cavity and so two samples can be completed at the same time divided by middle block. Unique cold and heat separation design Plus emergency stop
button makes it more safe and stable.●Dual control of high-definition touch screen and physical keys, various mounting scheme can be saved.
●With water cooling system, it can finish two samples mounting in 7 minutes at the soonest.
Model
MPress-2HA
Product Name
Automatic Metallographic Mounting Press
Mould Diameter
Ф25mm，Ф30mm，Ф40mm (Choose one)
Cavity Height
140mm, effective 85mm, mounting two samples at the same time
Heating Power
Ф25mm: 1KW
Ф30mm 1.8KW;
Ф40mm 2.4KW
Pressure
50~200bar (150bar ex-factary set, equivalent to 15Mpa, 150kgf/cm2)
Heating Temperature
50~180℃ (120℃ ex-factary set)
Heating Time
1~7min (4min30s ex-factary set)
Dwell Time
30s~7min (1min ex-factary set)
Cooling Time
1~30min (2min ex-factary set)
Total Time
7min30s for two samples Ф30mm, 9min for two samples Ф40mm
Cooling Method
External water source cooling
Power Supply
220V, 50Hz，10A
Machine Dimensions
530×510×480mm
Net Weight
60Kg
