The Radiation Detector is a small sensitive radiation meter used for monitoring X-rays, gamma and beta radiation. The Radiation Detector uses an energy compensated Geiger-Müller counting tube as detector for accurate measurement. According to the Radiation Protection Ordinance (StrSchV), it is mandatory in some areas to perform personal dosimetry using a Geiger counter. The Geiger counter is equipped with a powerful microprocessor and a TFT screen, which makes it easy to operate.

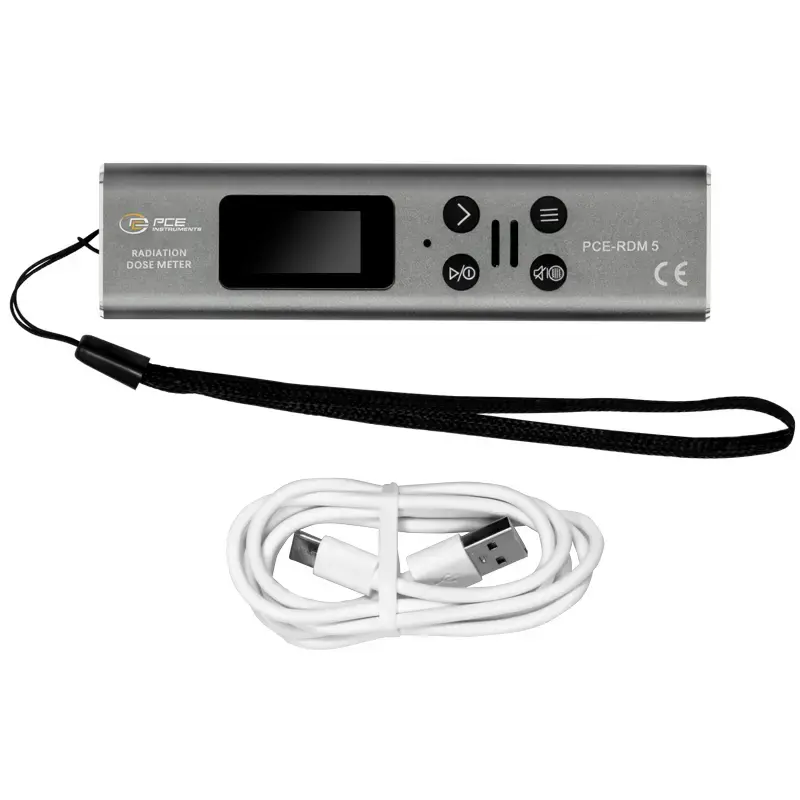

Radiation Detector RDM 5

  • Radiation min/max
    Measuring range min. 0,08 µSv/h
    Measuring range max. 9.999 µSv/h
    Resolution 0,01 µSv/h
    General technical data - Specific
    Data interface USB-C
    Battery capacity 400 mAh
    Response time 10 s
    General technical data
    Menu language English
    Protection class IP20
    Weight 45 g
    Net weight 57 g
    Weight gross 141 g
    Length 105 mm
    Width 27 mm
    Height 17 mm
    Operating conditions -10 – 50 °C, 10 – 95 %
    Storage conditions -10 – 50 °C, 10 – 95 %
