VE 390N is the ideal snake borescope for the analysis of buildings (walls, supports, eaves, gutters, attics, crawl spaces), plumbing (pipes, drains, sewers, wells) and heating, ventilation, air conditioning and refrigeration (HVACR) systems (ducts, furnaces, chimneys, boiler and condenser tubes). The IP68-rated cable of this inspection camera is waterproof and heavy duty, making the PCE-VE 390N well suited for use in tough environments like construction sites and industrial installations.


*** Not suitable for medical use ***


- Camera cable length 10 m / 32 ft 9"
- Camera head diameter 28 mm / 1.1"
- Storage of images and videos
- 8 GB SD memory card incl.
- LED lighting
- With centering brush
- Robust carrying case incl.
- Additional camera cables optional

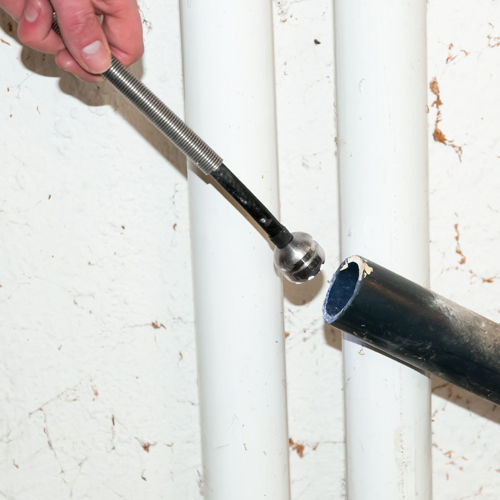

Snake Camera VE 390N

  • Cable diameter

    28 mm / 1.11 in

    Cable length

    10 m / 32.8 ft

    Depth of field

    10 mm … ∞ / 0.4 in to infinity

    Field of view

    150.8°

    Bending radius 90 mm / 3.54 in.
    Illumination 8 LEDs
    Image sensor CMOS / 640 x 480
    Picture rate 30 / sec.
    Display 88.9 mm / 3.5 in TFT LCD monitor
    Interface Mini USB 1.1 / AV out
    Storage options Image or video
    Storage 8 GB memory card (can be increased to 32 GB)
    Compression format MPEG 4
    Picture format JPEG (640 x 480)
    Video output format NTSC / PAL
    Video format ASF (320 x 240)
    Operation and storage temperature -10 ... 60°C / 14 ... 140°F
    Voltage supply Rechargeable 3.7V lithium-ion battery
    Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
    Weight, incl. carrying case 9.98 kg / 22 lbs
    Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft
