The turbidity meter TUM 50 is a portable device for measuring turbidity according to ISO 7027. This allows the user to quickly and easily determine important water parameters with the turbidity meter and to check the quality of drinking water and waste water. The calibration of the turbidity meter TUM 50 is very easy due to the calibration standards supplied. The calibration can be carried out with 7 preset points. In addition, user-specific calibration points can also be set. The turbidity meter is capable of measuring turbidity of liquids up to 2000 NTU.



Furthermore, the measuring unit can be switched to EBC (European Brewery Convention) or ASBC (American Society of Brewing Chemists). The measured values ​​are displayed on the large color display. The turbidity meter is mainly used in the laboratory and is therefore operated with a plug-in power supply. Via the rear USB interface, the turbidity meter can be connected to a computer and the memory can be cleared.



What is the EBC or European Brewery Convention? (See above in the picture gallery) As EBC, the color or the color intensity of beer and wort is described in Europe. This set value describes how much light is absorbed by beer with a certain original wort content. The turbidity meter can determine this value and thus helps in judging the type of beer.


- High precision
- 3 measuring units
- Turbidity calibration up to 7 points
- Color display
- Easy handling
- USB interface

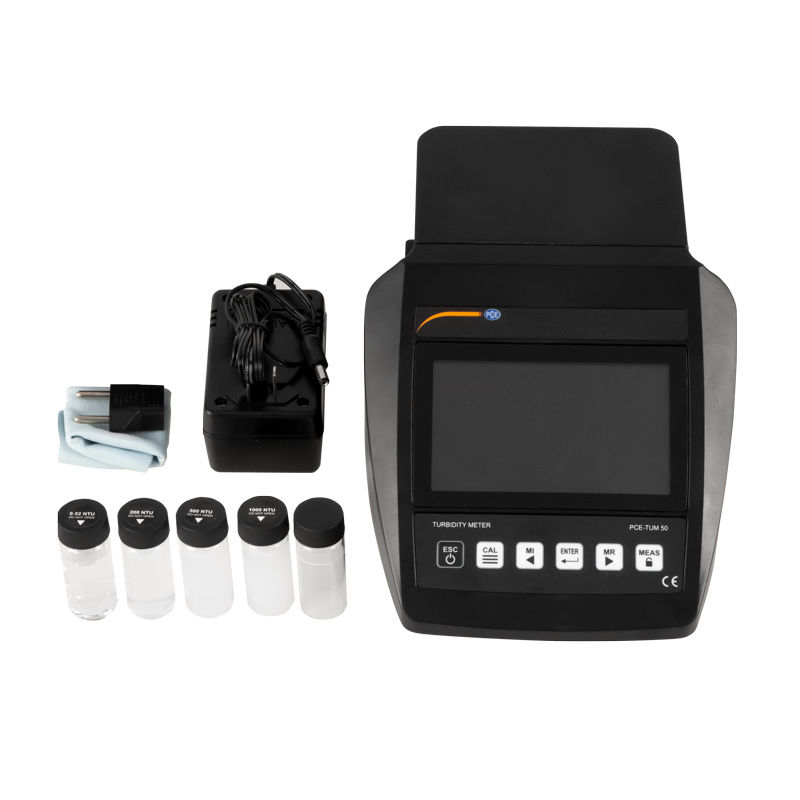

Turbidity Meter TUM 50

  • Measurement method ISO 7027 (90°)

    Measuring ranges 0 ... 2000 NTU
      0 ... 500 EBC
      0 ... 9999 ASBC

    Resolution < 100 NTU: 0.01
      < 999 NTU: 0.1
      < 2000 NTU: 1

    Accuracy < 500 NTU: ± 2% of v. Mw.
      < 2000 NTU: ± 3% of Mw.

    Calibration < 0.02 NTU
      10 NTU
      200 NTU
      500 NTU
      1000 NTU
      1500 NTU
      2000 NTU
      Or user-specific

    Light source 850 nm IR LED
    Scattered light influence < 0.02 NTU
    Dimensions of cuvettes 60 x 25 mm / 2.4 x 1 in
    Automatic shutdown 2 hours after the device was not used
    Storage 200 memory slots
    Interface USB
    Power supply 220 VAC/50 Hz, 12 VDC
    Current consumption About 300-mA
    Operating temperature 0 ... 60°C / 32 ... 140°F
    Dimensions 250 x 177 x 96 mm / 9.8 x 7 x 3.8 in
    Weight About 1.2 kg / 2.6 lbs
