The vibration analyzer is a technologically advanced instrument for the precise measurement and evaluation of vibrations in industrial applications. It enables the simultaneous measurement of vibrations on shafts and bearings across four independent channels. Equipped with high-quality piezoelectric acceleration sensors, even the smallest vibrations can be accurately captured.


Feature

  1. - 4 channels for measuring and evaluating vibrations
  2. - Measurement on shafts and bearings

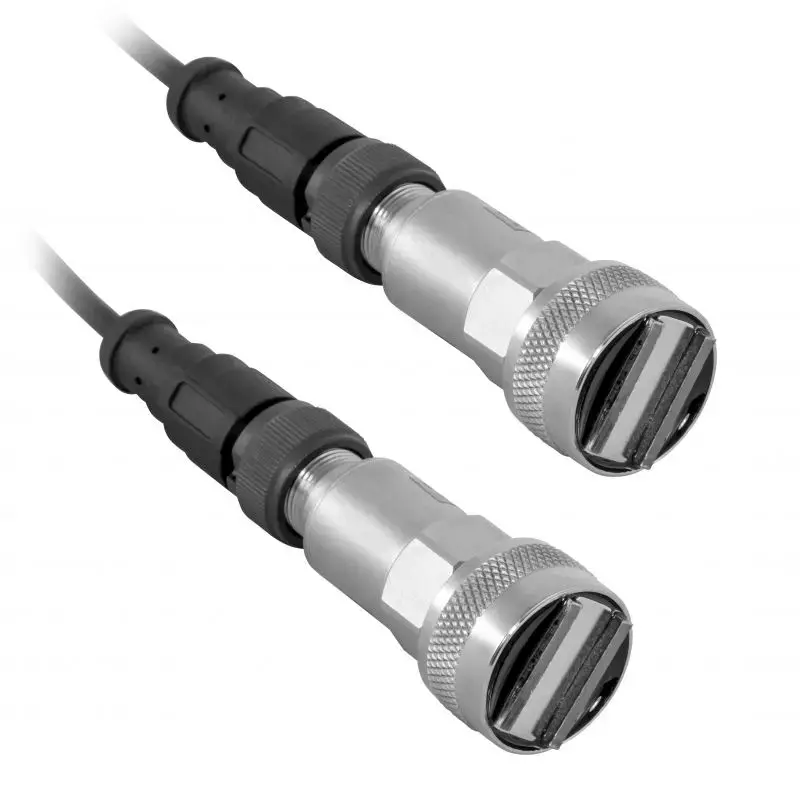

  3. - Reliable piezoelectric acceleration sensors
  4. - Wide frequency range: 1 ... 25000 Hz
  5. - Acceleration measurement range: 0.001 ... 200 m/s²
  6. - Velocity measurement range: 0.001 ... 200 mm/s
  7. - Balancing - up to 8 correction planes
  8. - Evaluation according to ISO 10816
  9. - USB interface and 4 GB data storage

Vibration Analyzer VM 400B

  • Acceleration
    Measurement Range +0.001 m/s² ... +200 m/s²
    Resolution 0.001 m/s²
    Accuracy ± 5 %

    Velocity
    Measurement Range +0.001 mm/s ... +200 mm/s
    Resolution 0.001 mm/s
    Accuracy ± 5 %

    Displacement
    Measurement Range +0.001 µm ... +2000 µm
    Resolution 0.001 µm
    Accuracy ± 5 %

    Optical Rotational Speed
    Measurement Range +10 rpm ... +200000 rpm
    Resolution 1 rpm
    Accuracy ± 5 %
  • General Technical Data
    Number of Measurement Channels 4
    Frequency 1 ... 25000 Hz
    Display Type VGA Color Display
    Display Size 3.5 inches
    Storage Capacity 4 GB
    Data Interface USB
    Battery Capacity 3200 mAh
    Battery Voltage 3.6 V
    Battery Type Lithium-Ion Battery
    Operating Time 8 hours
    Selectable Auto Power Off 30 ... 99999 s
    Menu Language German, English, Spanish, Polish, Russian, French, Chinese, Indonesian
    Protection Class (Device) IP20
    Power Supply Battery, Power Adapter
    Weight 460 g / 1.0 lb
    Device Weight with Accessories 2800 g / 6.1 lb
    Device Weight with Accessories and Packaging   2800 g / 6.1 lb
    Dimensions (L x W x H) 220 x 100 x 42 mm / 8.6 x 3.9 x 1.6 in
    Additional Dimensions Sensor Cable Length: 140 cm
    Operating Conditions -10 ... 50 °C , 90 % r.H
    Storage Conditions -10 ... 50 °C , 90 % r.H
